The Hörmann programme
Customised to the requirements and application area

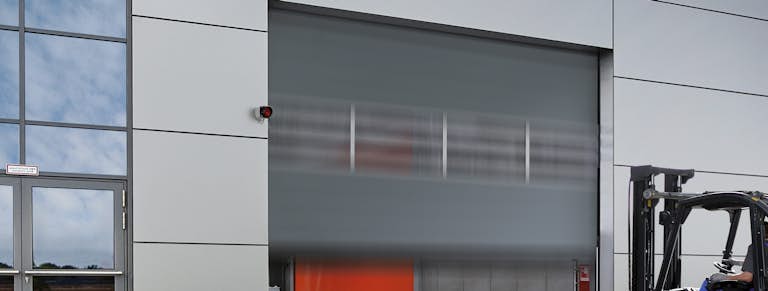

Spiral doors and high-speed sectional doors
The doors have robust insulating sections for high thermal insulation. This minimises energy loss. The spiral doors and high-speed sectional doors have a section thickness of 100 mm for the special requirements of cold store and deep freeze logistics.
They can be used as external and internal doors. Depending on the track application version, the doors are guided into a spiral or track when opened and reach opening speeds of more than 4 m/s.
A standard frequency converter control takes stress off the entire mechanical door elements, guaranteeing nearly wear-free, quiet door travel.
Particularly easy to fit: A shaft and operator cover made of impact-resistant polycarbonate is available for our HS spiral doors. It is significantly lighter than a steel cover, which simplifies fitting and maintenance.

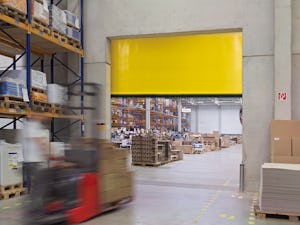

Flexible high-speed doors
When it comes to the interior of industrial and logistics facilities, optimised work processes are essential. This is why high-speed doors with particularly flexible curtains are suitable here. They separate parts of buildings from each other, for example to reduce draughts, or act as equipment protection doors to secure production processes and thus ensure workplace safety. Special versions for frequently accessed cold store and deep freeze areas ensure greater energy efficiency. Because flexible high-speed doors can reach opening speeds of up to 2.2 m/s, fast vehicle passage, for example with industrial trucks, is still possible.
In the event of a crash, our V 5025 Z high-speed door has a special feature: Thanks to its innovative zipper technology, the door automatically re-feeds when it travels, ensuring it remains fully operational at all times.
An innovative SoftEdge bottom profile and a radio crash switch also ensure trouble-free operation and production processes for many door types. Not only does the flexible profile prevent damage to the door system as far as possible, but the radio crash switch also sends a signal to the control so that the door stops immediately in the event of a crash.
The standard frequency converter control ensures a long service life.
Solid rubber high-speed doors
Harsh environmental conditions call for high-performance doors. The solid rubber high-speed doors are designed for application areas such as in the mining industry, waste management or the transport sector.
They ensure reliable door operation and a long service life of the door, even in the case of high wind loads and large temperature differences. The doors open at up to 1.22 m/s.
The highly specialised door solutions are low-maintenance and easy to fit. Even after impact damage, they are quickly ready for use again with a few simple steps and minimum use of tools.
High-speed folding doors
Whether as an optimum solution for the interior of deep freeze logistics with temperatures down to -30 degrees, for closing off buildings with large openings up to 14 metres wide and 10°metres high, or as an external door that is exposed to high wind loads and cold ambient temperatures – the high-speed doors with folding curtains are designed precisely to meet these requirements.
The curtain of the flexible high-speed folding doors is opened using a patented belt system with pull belts and folds in the lintel area. The high-speed folding doors reach opening and closing speeds of up to 1.0 m/s.
Flexible guide belts made from PVC protect against damage and downtime in case of harsh contact by a forklift truck or lorry. If the floor rail of the curtain has been pushed out of the guide belts after an accident, it can be rethreaded without tools. Another advantage of the flexible guide belts is its minimal noise during movement of the curtain and wind reinforcement laths caused by the wind.
High-speed doors from Hörmann
Individual solutions
Various demands require individual door solutions. Based on our expert know-how, Hörmann develops customer-specific solutions for numerous application areas, such as the food industry, clean rooms, cooling zones, conveyor systems or for machine safety. Please contact us!
Good reasons to try Hörmann high-speed doors
Fast, flexible and energy-efficient workflows
We think and act green
As a family business, we are very conscious of our responsibility to future generations and offer all industrial doors, operators, loading technology, construction project doors and perimeter protection systems for construction projects CO2-neutral upon request. The Hörmann climate protection strategy aims to reduce and avoid CO2 emissions. We cover 100% of our electrical power needs at all European production locations with purchased green electricity.
We also apply many other measures to reduce our consumption and save more than 75000 tonnes of CO2 each year. We work with ClimatePartner to offset the emissions that we do generate by supporting certified climate protection projects.
Ultra-fast door opening
The new generation of external and internal doors opens at a record speed of over 4.0 m/s.* This minimises the waiting times of transport vehicles in front of the door, so that forklift trucks, for example, can drive through the door without stopping.
* With the world record-breaking high-speed door HS 5040 TurboLux S
Maximum transparency
The particularly high door sections of the HS 5040 TurboLux S with a height of 550 mm offer generous visibility without vertical rails. 90% of the door leaf surface are transparent. This creates a bright and friendly working environment and ensures safe transport routes. In addition, the high and impact-resistant polycarbonate sections are very sturdy and easily withstand the demands of a harsh industrial environment.
Reliable break-in resistance equipment
Spiral doors HS 7030 PU 42, HS 5012 PU 42 S and HS 5015 PU N 42 come with certified RC2 security features in accordance with DIN/TS 18194 as standard. The anti-lift kit functions mechanically and thus effectively protects your goods and machines during power outages.
A permanently clear view
A special surface coating, similar to that used on car headlights, protects the Duratec glazing from scratches and damage caused by cleaning over the long term. This preserves the attractive appearance despite heavy use in tough industrial settings.
Less maintenance work required
The HS 5040 TurboLux and HS 7030 PU 42 door versions (up to a door size of 5000 mm wide and/or 5000 mm high) are equipped with counterbalance via counter weight. Both convince with low wear and greatly reduced maintenance costs.
