Our Security Line offers bollards for everyday access control, for example for private parking spaces, access to commercial properties or pedestrian areas. The Security Line includes automatic, semi-automatic, removable and fixed bollards. In addition, we also offer reinforced bollards with an increased protection level.
Our High Security Line is the right choice for securing especially sensitive areas with the highest of safety demands. The automatic, removable or fixed bollards have international security certifications or meet their requirements.
Bollards - security levels at a glance

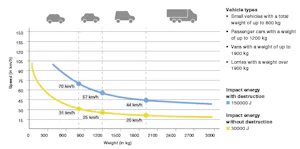

The security provided by a bollard is measured based on different impact energies. The energy with which a vehicle makes impact is dependent on the vehicle type, weight and speed. The impact energy is decisive for damage to and function of the bollard.
Impact energy with destruction
This value indicates what speed of a specific vehicle type the bollard can resist. If, for example, a vehicle weighing 1200 kg hits the bollard at a speed of 57 km/h (see graphic), permanent damage can be caused to the mechanisms and construction of the bollard, meaning that the bollard needs to be replaced after the crash. In the majority of cases, passage would be prevented.
Impact energy without destruction
This value indicates that a collision of this vehicle type moving at a specific maximum speed is stopped and no damage will result to the mechanism or construction of the bollard. For example, if a vehicle weighing 1200 kg hits the bollard at a speed of 25 km/h, the function and safety of the bollard would be maintained.
Automatic bollards

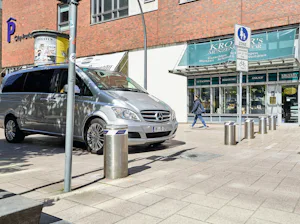

Automatic bollards have the advantage that they can quickly be lowered into the ground as needed without physical effort and be raised just as quickly. Individual cars can easily be granted temporary access. Otherwise, traffic is prevented effectively. Our automatic bollards are available in different versions depending on the security needs and frequency of use.
Automatic bollards in our Security Line:
- Automatic bollards with integrated electromechanical operator for average frequency of use (approx. 100 movements per day, 200,000 movements in total).
- Automatic bollards with integrated hydraulic operator for high frequency of use (approx. 2,000 movements per day, 3,000,000 movements in total).
- Automatic bollards with reinforced cylinder material, increased resistance and integrated hydraulic operator for high frequency of use (approx. 2,000 movements per day, 3,000,000 movements in total).
Automatic bollards in our High Security Line:
- Automatic bollards with integrated hydraulic operator for high frequency of use (approx. 2,000 movements per day, 3,000,000 movements in total).

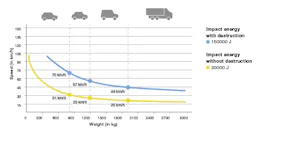

Security Line - automatic bollard with integrated electromechanical operator
Security Line - automatic bollard with integrated hydraulic operator
Security Line - automatic bollard with hydraulic operator and reinforced cylinder material

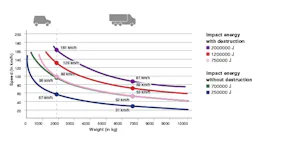

High Security Line - automatic bollard with integrated hydraulic operator
Custom-configurable control concepts ensure tailored perimeter protection solutions. For example, you can opt for a control based on the master/slave model, meaning one automatic bollard controls multiple other automatic bollards, which follow its command. Depending on the passage width, a wide range of bollards can be combined and actuated in this way. In addition, the controller can be expanded to include control elements (such as code switches) and / or further activating kits, such as for induction loops.
Semi-automatic bollards
Security Line - semi-automatic bollard
Our semi-automatic bollards are suitable for all applications with low frequencies of use (approx. 5 movements per day, 3,000,000 movements in total).
Use our semi-automatic bollards to reserve parking spaces in your company’s parking lot, for example. The extended bollard prevents unauthorised vehicles from parking in the space. By contrast, individuals with parking permits can use the space trouble-free by manually lowering the bollard.
Our semi-automatic bollards are equipped with a gas spring and so they do not need a power supply. The bollards can be lowered by pushing them down manually and raised automatically after unlocking by the integrated gas spring.
Removable bollards

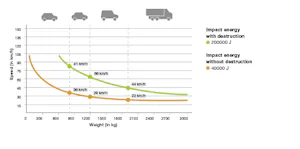

Security Line - removable bollard

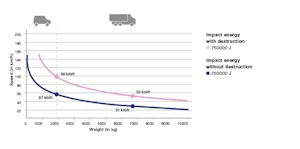

High Security Line - removable bollards with reinforced base

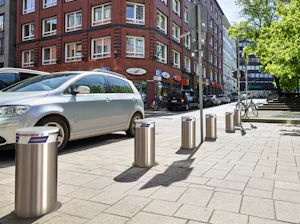

Our removable bollards are the right choice for entrances used very rarely (approx. 2 movements per day).
For example, use our bollards to secure areas that are locked for a majority of the day but have to be accessible at a specific time. One conceivable application, for example, is at event locations with entrances that should be locked and opened at very specific times.
If a situation requires the bollard to be removed spontaneously, for example to allow an emergency vehicle to pass, Security Line bollards can easily be disassembled without any tools.
Optionally, you can also select the removable bollards from our High Security Line with reinforced base. These are disassembled using special tools.
Fixed bollards

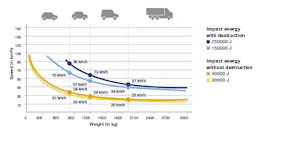

Security Line - fixed bollard with ground anchor

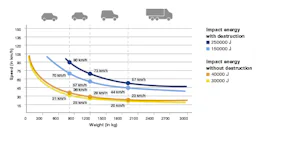

Security Line - fixed bollard with bottom plate

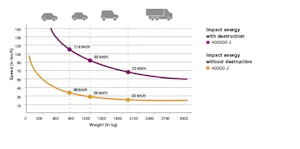

Security Line - fixed bollard with reinforced ground fitting
High Security Line - fixed bollard with reinforced ground fitting

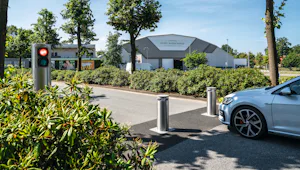

If you want to restrict access to specific areas permanently, our fixed bollards are the best choice. They are primarily suitable for permanently protecting an area, for example a pedestrian area where no car traffic is permitted and no delivery vehicles require access. In case of damage or an exceptional event, our fixed bollards with bottom plate can easily be disassembled.
Our fixed bollards are available in different versions:
Our Security Line offers fixed bollards with bottom plate, bollards with ground anchor or bollards with reinforced ground fitting.
The High Security Line also includes fixed bollards with reinforced ground fitting cast in concrete, meeting the highest of security needs.
Additional high-security barriers
Road blockers for entrances and exits up to 6 metres wide, tyre killers to effectively prevent travel in the opposite direction: Learn more about our other High Security Line products under High-security barriers.
Design bollards
For separating off road traffic
With design bollards from Hörmann, pavements, pedestrian zones or public spaces are separated from road traffic simply, elegantly and cost-effectively. They are primarily arranged in a row to prevent cars from parking or driving between the bollards, for example. For pedestrians or cyclists, a barrier-free passage or passageway is maintained.
The design bollards of the Security Line design bollards are optionally available in painted steel or with an elegant stainless steel surface. Five designs in three different diameters enable the harmonious design of representative areas. As a removable version or with an integrated bicycle lock holder, they offer perfect application options for any location.
Good reasons to choose Hörmann bollards
We think and act green
As a family business, we are very conscious of our responsibility to future generations and offer all industrial doors, operators, loading technology, construction project doors and perimeter protection systems for construction projects CO2-neutral upon request. The Hörmann climate protection strategy aims to reduce and avoid CO2 emissions. We cover 100% of our electrical power needs at all European production locations with purchased green electricity.
We also apply many other measures to reduce our consumption and save more than 75000 tonnes of CO2 each year. We work with ClimatePartner to offset the emissions that we do generate by supporting certified climate protection projects.
Matching bollard versions
For a personalised combination of bollards from the Security and High Security Line, all bollard cylinders are identical in appearance. This means that fixed, semi-automatic and automatic bollards can be perfectly combined by choosing matching bottom plates – ensuring a harmonious overall appearance.
BiSecur radio system with certified security
Perimeter protection systems can also be conveniently operated with the BiSecur
radio system. The newly developed, extremely secure BiSecur encryption protocol with a stable, interference-free range makes sure that no-one can copy your radio signal. Tested and certified by security experts at the Bochum University and as safe as online banking.
| Product | Hörmann model | Height | Testing 1 | Testing 2 | Tested Configuration |
|---|---|---|---|---|---|
| Fixed Bollards | F 275-M30-900 FF | 900 | PAS68:2013 V/7500(N3)/48/90:-1.3 | IWA 14-1 2013: V/7200(N3C)/48/90:-1.0 | Single |
| Fixed Bollards | F 275-M30-900 ST | 900 | PAS68:2013 V/7500(N2A)/48/90:-0.7/-2.1 | IWA 14-1 2013: V/7200(N2A)/48/90:-0.4 | Single |
| Fixed Bollards | F 275-M50-900 ST | 900 | PAS68:2013 V/7500(N3)/80/90:2.6/31.7 | IWA 14-1 2013: V/7200(N2B)/80/90:2.9 | Single |
| Fixed Bollards | F 275-M30 -900 SF | 900 | PAS68:2013 V/7500(N3)/48/90:7.4 | IWA 14-1 2013: V/7200(N3C)/48/90:7.7 | Triple Foundation |
| Fixed Bollards | F 275-M50-1200 SF | 1200 | PAS68:2013 V/7500(N3)/80/90:0.7/24.7 | IWA 14-1 2013: V/7200(N3C)/80/90:0.5 | Triple |
| Fixed Bollards | F 275-M50-900 FF | 900 | PAS68:2013 V/7500(N3)/80/90:0.0/20.0 | IWA 14-1 2013: V/7200(N3C)/80/90:0.3 | Single |
| Automatic Bollards | A 275-M30-900 E | 900 | PAS68:2013 V/7500(N3)/48/90:1.0/2.5 | IWA 14-1 2013: V/7200(N3C)/48/90:1.0 | Single |
| Automatic Bollards | A 275-M30-1200 E | 1200 | PAS68:2013 V/7500(N3)/48/90:4.6/4.9 | IWA 14-1 2013V/7200(N3C)/48/90:4.9 | Single |
| Automatic Bollards | A 275-M30-900 H | 900 | PAS68:2013 V/7500(N3)/48/90:1.0/2.5 | IWA 14-1 2013: V/7200(N3C)/48/90:1.0 | Single |
| Automatic Bollards | A 275-M30-1200 H | 1200 | PAS68:2013 V/7500(N3)/48/90:4.6/4.9 | IWA 14-1 2013V/7200(N3C)/48/90:4.9 | Single |
| Automatic Bollards | A 275-M50-900 E | 900 | PAS68:2013 V/7500(N3)/80/90:9.3/29.1 | IWA 14-1 2013: V/7200(N3C)/80/90:9.6 | Single |
| Automatic Bollards | A 275-M50-1200 E | 1200 | PAS68:2013 V/7500(N3)/80/90:1.4/8.0 | Single | |
| Automatic Bollards | A 275-M50-900 H | 900 | PAS68:2013 V/7500(N3)/80/90:9.3/29.1 | IWA 14-1 2013: V/7200(N3C)/80/90:9.6 | Single |
| Automatic Bollards | A 275-M50-1200 H | 1200 | PAS68:2013 V/7500(N3)/80/90:1.4/8.0 | Single | |
| Semi Autos | S 275-M30-900 H | 900 | PAS68:2013 V/7500(N3)/48/90:1.0/2.5 | IWA 14-1 2013: V/7200(N3C)/48/90:1.0 | Single |
| Semi Autos | S 275-M30-1200 H | 1200 | PAS68:2013 V/7500(N3)/48/90:4.6/4.9 | IWA 14-1 2013V/7200(N3C)/48/90:4.9 | Single |
| Semi Autos | S 275-M50-900 H | 900 | PAS68:2013 V/7500(N3)/80/90:9.3/29.1 | IWA 14-1 2013: V/7200(N3C)/80/90:9.6 | Single |
| Semi Autos | S 275-M50-1200 H | 1200 | PAS68:2013 V/7500(N3)/80/90:1.4/8.0 | Single | |
| Removable | R 275-M30-900 | 900 | PAS68:2013 V/7500(N3)/48/90:-0.67/0.0 | IWA 14-1 2013: V/7200(N3C)/48/90:-0.95 | Single |
| Removable | R 275 -M30-900 SF | 900 | PAS68:2013 V/7500 (N2)/48/90:0.0/0.0 | IWA 14-1 2013: V/7200 [N2A]/48/90:0.3 | Triple Foundation |
